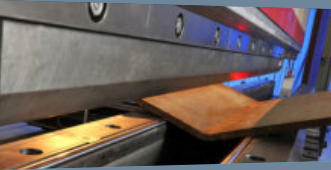

CNC-Bending

Our 12 meter / 2000 ton press brake is the largest in South Africa. Technical Specifications • Maximum length of part : 12 000mm. • Maximum Tonnage : 2000 tonnes. • Maximum part weight : 10 tonnes. • 6 axis backstop. • Angle Measuring system. • 3 point Bending and Air Bending techniques. • Full 3D Software. • Angled bar made to order.

Drilling • Counter sinking • Tapping • Reaming CNC Machining Centre • 3 Axis milling • Thread milling • Helix milling • Counter boring CNC Lathe • Live Tooling • Travel of 300.0mm OD & 1100mm in length Other information • High production runs • Automatic Pallet Change • Automatic Tool Change

CNC-Machining

Our laser cutting machines are able to cut a wide variety of materials including: • Mild steel, S235, S275, S355, hot and cold rolled sheets. • Floor plates or Vastrap / Checker plate. • Hard wearing plates. • Copper. • Brass. • Tubes. • Stainless steel – Various grades. • 3CR12. • Aluminium - Various grades. • Spring Steel. • Perspex, plastics, titanium, perforated plates, channels and angles.

Technical specifications

Maximum Cutting Size: • 13 000mm X 3000mm. Maximum Thickness • Mild Steel : 30mm. • Stainless Steel : 40mm. • 3CR12 : 40mm. • Aluminium : 25mm. • Brass : 10mm. • Copper : 10mm • Tube cutting : up to 280 diameter. Other Information • +- 0.2mm - 0.3mm tolerances, dependant on the type and thickness of the material to be processed. • All parts are deburred before despatch. • Flattening of plate is done after cutting upon request.

CNC-Laser Cutting

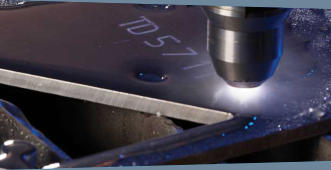

HD Plasma Cutting

We are able to cut a wide variety of materials including: • Commercial quality, S275, S355 and many other graded steels. • Floor plates or Vastrap / Checker plate. • Hard wearing plates (SS10/200). • Stainless steels – Various grades. • 3CR12. • Aluminium - Various grades Technical Specifications Maximum cutting Size • 12 000mm X 2 500mm. Maximum material thickness Ferrous and non ferrous metals: 25mm. Other Information • +- 1mm tolerances, dependant on the type and thickness of the material to be processed. • Smooth cut surface. • Pickle & passivate of Stainless steel on request. • Flattening of plate is done after cutting.

We supply and cut various grades of stainless steels and aluminium.

Technical specifications

Maximum Cutting Size: • 22 000mm x 3 000mm. Maximum material thickness • Stainless steel : 50mm • Aluminium : 50mm • S355JR-AR : 45mm Other information • Pickle and passivate of stainless steel on request. • +- 2mm - 3mm tolerances, with a slight taper “The taper increase as thickness increases” dependant on the type, thickness and contours of the parts to be cut.

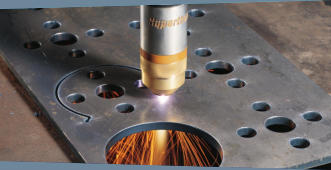

Plasma Cutting

CNC-Flame Cutting

We are able to cut a wide variety of materials using our CNC Flame Cutting machines including: Mild steel, S275, S355, JO + N, and various other graded material. • Floor plates or Vastrap / Checker plate. • Bennox – SS10/100. • ROQ-TUF. • ROQ-LAST. • Domex - Various grades. • Weldox - Various grades. • Hardox - Various grades.

Technical specifications

Maximum Cutting Size: • 22 000mm x 2 500mm. Maximum material thickness • Mild Steel : from 5mm - 300 mm. Other information • All cut parts are fettled before despatch. • Up to +/- 2mm - 3mm cutting tolerance, dependant on material thickness and contours to be cut. • Flattening of plate is done after cutting on request. • Maximum lifting capacity is 10 tonnes.

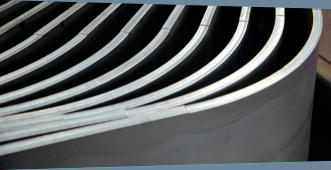

CNC-Rolling

We offer CNC Rolling on state of the art 4 roll set equipment, which offers industry leading accuracy. Technical Specifications Maximum material thickness and width • 3000mm x 50mm thick in mild steel (Much thicker if parts are narrower). • 3000 mm x 25mm thick in stainless steel (Unlimited thickness if parts are shorter). • Quenched and Tempered steels – depending on tensile strength up to • 25mm thick (Much thicker if parts are narrower). Other Information • Minimum rolling diameters apply. • Maximum part weight : 10 tonnes. • Tacking and/or welding will be done on rolled parts on request
